Crowd Control Barricade Gates

Create Controlled Access Points Within Your Barricade Line

Friedrichs crowd control barricade gates make it possible to create controlled access points directly within a barricade line without interrupting the overall crowd control layout.

Barricade gates are useful anywhere personnel, vehicles, equipment or authorized guests need to pass through an otherwise continuous barricade system.

Friedrichs manufactures barricade gates for several of our crowd control barricade systems, with multiple gate widths and both single-gate and double-gate configurations available.

F2 Barricade Gates

The Friedrichs F2 Gate is designed to work in line with several Friedrichs barricade models, making it a versatile choice for both new and existing barricade inventories.

F2 Gates are compatible with:

F2-series crowd control barricades
FX-7 straight-stacking barricades
F-48 crowd control barricades

This compatibility allows customers with different Friedrichs barricade models to incorporate controlled gate openings into their existing barricade layouts.

Standard Male Gate With Lockable Latch

The standard Friedrichs gate is a male gate designed to install directly in line with compatible crowd control barricades.

The male gate includes a lockable latch, allowing the gate opening to be secured when access is not required.

This makes it possible to maintain a continuous barricade perimeter while still providing a designated point for controlled entry and exit.

Single-Gate and Double-Gate Openings

A standard male gate can be used by itself to create a single-gate opening within a barricade line.

For wider openings, Friedrichs also manufactures female gates designed to be used in conjunction with a male gate. A male gate and female gate can be paired together to create a double-gate opening.

The lockable latch is located on the male gate. The female gate does not have its own latch and is intended to work with the male gate as part of the double-gate configuration.

Double-Gate Configuration

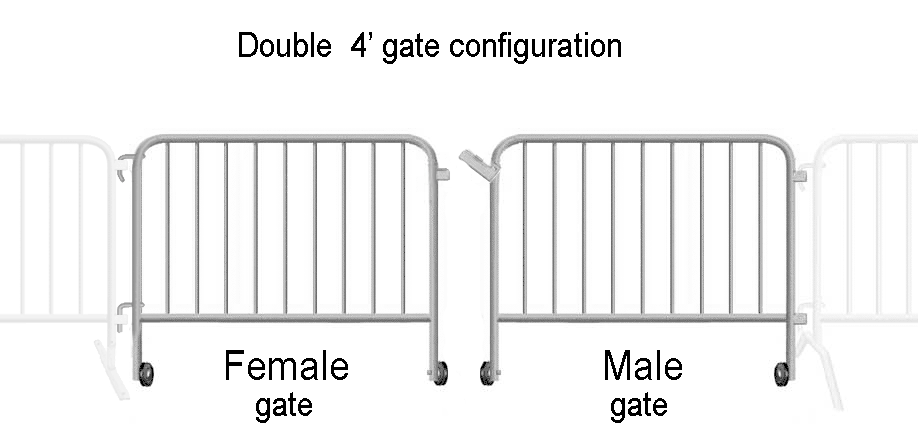

Friedrichs double crowd control barricade gate configuration using male and female gates

The diagram shown here illustrates a double-gate configuration using two 4-foot gates.

Double gates are not limited to matching gate sizes. Different male and female gate widths can be combined to create an opening appropriate for the application.

Possible combinations include:

4' male + 4' female
4' male + 6' female
4' male + 8' female
6' male + 6' female
6' male + 8' female
8' male + 8' female

Other configurations may be possible depending on the barricade layout and gate requirements.

Choose the Gate Opening That Fits Your Layout

Friedrichs barricade gates are available in several widths, allowing the gate opening to be selected based on the access requirements of the site.

4-Foot Gate	Compact gate section for smaller controlled access openings
6-Foot Gate	Mid-size gate section for wider pedestrian or equipment access
8-Foot Gate	Large gate section for applications requiring a wider opening
11-Foot Gate	Available by special order for applications requiring an extra-wide single gate

Gate sections can also be paired in a double-gate configuration when an even wider opening is required.

F43/45 Barricade Gates

Friedrichs also manufactures the F43/45 Gate for use with our F43 and F45 crowd control barricade systems.

The F43/45 Gate is compatible with either F43 or F45 barricades, allowing a gate opening to be incorporated into barricade runs using either model.

Although the F43 and F45 barricades have different overall heights, their connection points are positioned at the same height relative to the ground. This allows the F43/45 gate system to work with either barricade model.

48-Inch-High F-48 Gates

Friedrichs also has 48-inch-high F-48 gates available in limited quantities and sizes.

Because availability is limited, customers requiring an F-48 gate should contact Friedrichs for current sizes and quantities.

The standard F2 Gate can also be used with F-48 barricades, providing an additional gate option for customers with existing F-48 barricade inventories.

Galvanized and Powder-Coated Finishes

Friedrichs steel barricade gates are available with our standard hot-dip galvanized finish for corrosion protection and long-term professional use.

High-visibility powder-coated finishes are also available for applications requiring additional visibility, color identification or a specific appearance.

As with our crowd control barricades, powder coating is applied as an additional exterior finish after hot-dip galvanizing, so the underlying steel receives galvanized corrosion protection before the color coating is applied.

Common Barricade Gate Applications

Barricade gates can be incorporated into crowd control layouts for applications including:

Controlled pedestrian entrances and exits
Event staff access points
Security checkpoints
Equipment access
Temporary vehicle access points
Parades and festivals
Concerts and special events
Municipal events
Police and public safety applications
Construction and restricted-access areas

Why Choose Friedrichs Barricade Gates?

Designed to integrate directly into compatible Friedrichs barricade systems
F2 Gate works with F2-series, FX-7 and F-48 barricades
F43/45 Gate works with both F43 and F45 barricades
Lockable latch on standard male gates
Single-gate and double-gate configurations
Male and female gate sections can be combined for wider openings
Multiple gate widths available
Hot-dip galvanized steel construction
Optional high-visibility powder-coated finishes
Designed for repeated professional use
Made in the USA
Manufactured by a family business established in 1938

Build the Right Gate Configuration

The right barricade gate depends on the barricade model, required opening width and whether the application calls for a single or double gate.

If you already have a Friedrichs barricade inventory, let us know which barricade models you are using and the approximate opening you need. We can help determine the appropriate gate configuration.

Related Friedrichs Barricade Products

F2-B Heavy-Duty Barricade
F2-B-FF Heavy-Duty Flat-Foot Barricade
FX-7 Straight-Stacking Barricade
View All Barricade Models

Need Barricade Gates?

Whether you need a single controlled access gate, a wide double-gate opening or gates to add to an existing Friedrichs barricade inventory, contact us to discuss the right configuration for your application.

Buy Barricades & Gates | Rent Barricades | Request a Quote

Call 1-800-394-9294 for pricing, availability and product assistance.
